Potentiostat

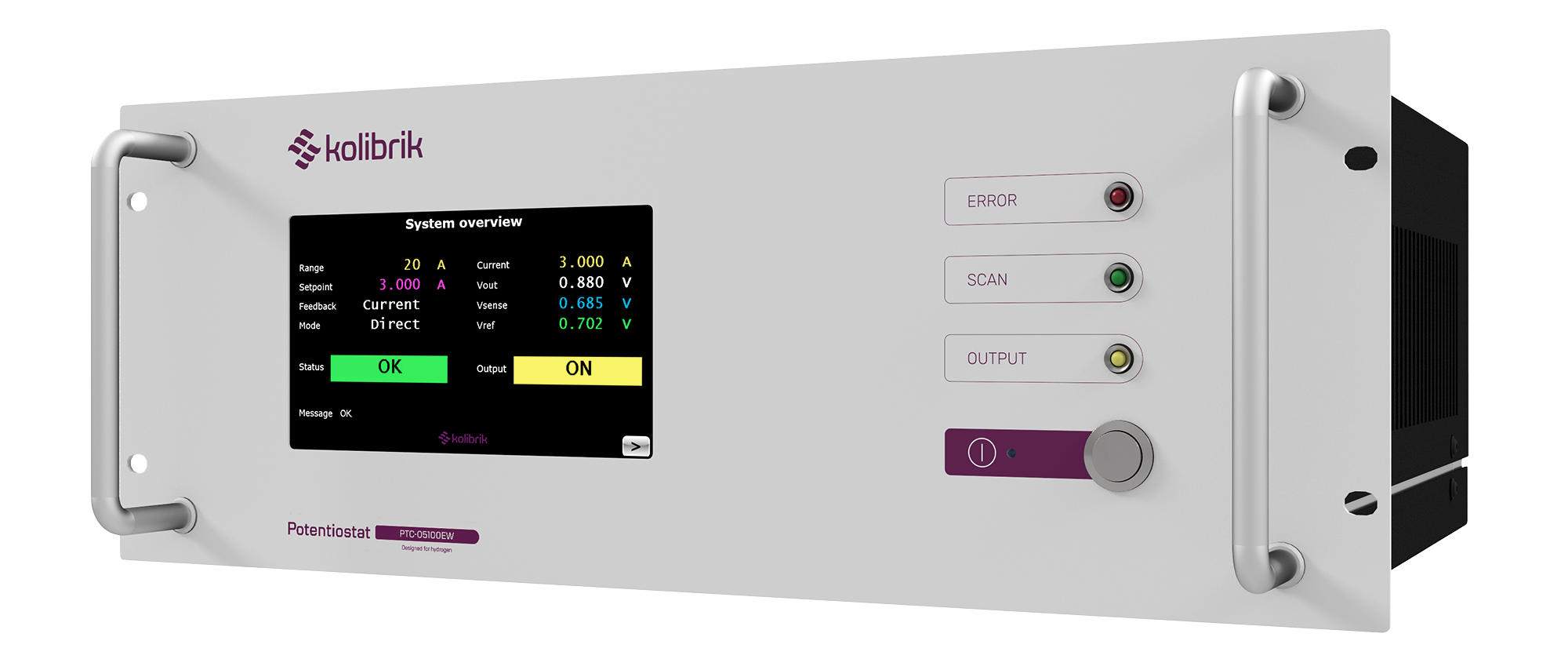

PTC-05100EW
PTC-05100EW
The PTC-05100EW is the most powerful Potentiostat/Galvanostat in the Kolibrik Potentiostat Product Family, designed to push the boundaries of electrochemical research. Delivering up to ±100 A current, the PTC-05100EW handles even the most demanding electrochemical experiments.
We just released Artemis – our new measurement and control software. It’s included with every new Kolibrik Potentiostat — and you can access it by upgrading your current workstation, too.
Take advantage of a 15% discount in June 2025!
Product Introduction Video
See Unboxing, introduction to features, and practical live measurement demonstration of Potentiostat PTC-05100EW.
Key Features
- Potentiostat/Galvanostat up to ±100 A (4-quadrant)
- Current ranges up to ±100 A (4 ranges)
- Impedance spectroscopy 1 mHz ... 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with external control via TCP/IP, LabView drivers on request
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack cabinet, 4U height |
| Cooling | Water |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -5 V … +5 V |
| Compliance / Output current | -100 A … +100 A |
| Max. internal power dissipation | 1000 W |
| Current ranges | 500 mA, 5 A, 20 A, 100 A |
| Sampling | 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling
14-bit ADCs, up to 20 Msps for EIS measurements |

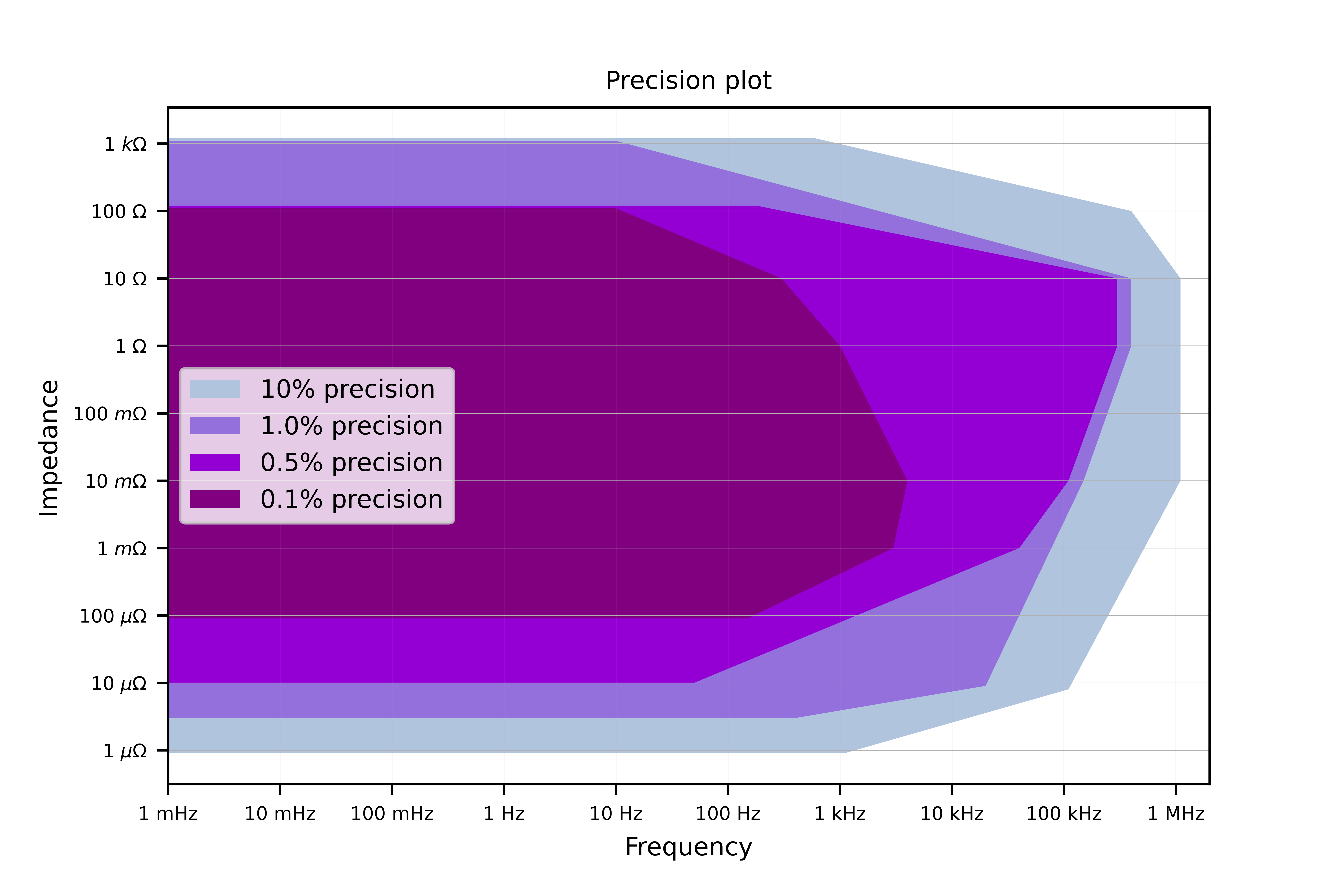

| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |

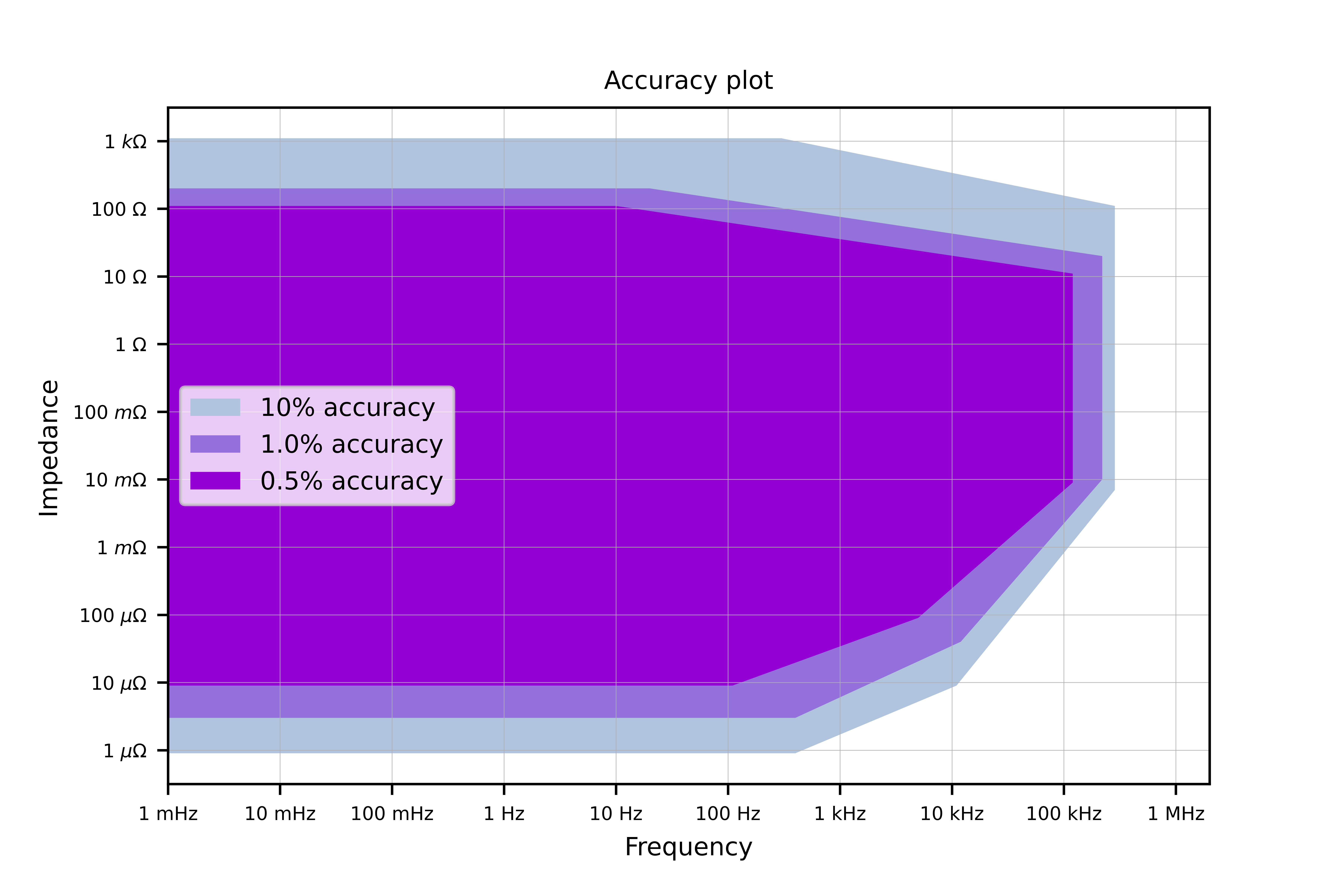

| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading
Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 50 A |
| PC connection | USB 2.0 |
| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools |
If these variants do not suit you, please contact us, we offer customized solutions!
Documentation
Software
To run your experiments, you’ll use Artemis – Kolibrik Measurement Software – our measurement and control app that manages everything from test sequencing to real-time data acquisition and visualization. Just connect the Potentiostat, choose your method, and let the science begin.
