Potentiostat Ultimate
PTCu-05100EW NEW
The PTCu-05100EW is a high-current powerhouse within the Kolibrik Ultimate Line, bringing true multi-channel MegaEIS architecture to a standalone high-power potentiostat. It delivers continuous heavy-duty performance with an output voltage of ±5 V, up to ±100 A, and integrated water cooling. Engineered for advanced scale-up R&D, it eliminates measurement bottlenecks by adding 3 simultaneous measuring channels, 1.25 Msps high-speed sampling, and hardware Trigger IN/OUT to seamlessly capture rapid transient events in your most demanding testing setups.
To control your device and run experiments, you use included Artemis — Kolibrik measurement software.
World-Class Power, Globally Trusted. Precision is our baseline. That’s why our official partner and global leader, Gamry Instruments, chooses to offer Kolibrik potentiostats. This synergy of high-current hardware and world-class expertise delivers the most reliable measurement systems to researchers and gigafactories everywhere.
Ultimate Line Exclusives
- 3 independent channels measuring simultaneously with no multiplexing
- 1.25 Msps high-speed sampling to run advanced electrochemical methods
- Built-in Trigger IN/OUT ports to synchronize with external devices (e.g. oscilloscopes)
- Dual-channel thermometer inputs
- Ethernet (LAN) interface for stable, high-bandwidth control
Core Capabilities
- Potentiostat/Galvanostat up to ±100 A (4-quadrant)
- Output voltage: -2 V … +10 V
- Current ranges up to ±100 A (4 ranges)
- Impedance spectroscopy 1 mHz ... 100 kHz
- Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
- Software with ext. TCP control, NI LabView drivers, Python tools
- USB 2.0 interface
Simultaneous Multi-Cell Diagnostics
Ideal for redox-flow batteries and short stacks. Measure up to 3 cells at once under identical load conditions without multiplexing errors.
High-Speed Transient Analysis
Leverage the 1.25 Msps sampling rate to capture rapid degradation events and fast electrochemical responses in advanced battery R&D.
Synchronized In-Operando Testing
Use the built-in Trigger IN/OUT to seamlessly sync your electrochemical methods with external oscilloscopes, custom pulse generators, or third-party DAQ systems.
Large-Format SOFC/SOEC Scale-Up
Deliver sustained high currents for solid oxide cells and electrolyzers while natively logging synchronized thermal data to prevent overheating.
Technical Parameters
| Power supply | 110 … 240 V AC / 50 … 60 Hz |
| Dimensions | 19“ rack cabinet, 5U height; 440 mm (W) × 177 mm (H) × 358 mm (D) |
| Cooling | Water *) |
| Protection rating | IP20 |
| Electrometer Input voltage range | 10 V … +10 V |
| Compliance / Output voltage | -2 V … +10 V |
| Compliance / Output current | -100 A … +100 A |
| Max. internal power dissipation | 1000 W |
| Current ranges | 500 mA, 5 A, 20 A, 100 A |
| Sampling | 24-bit ADCs, up to 1.25 Msps
|
| Measurement resolution | 0.001% of selected range for ≤ 1 ksps sampling |
| Accuracy | Voltage: ≤ 0.1% of range + 0.1% of reading
Current: ≤ 0.1% of range + 0.5% of reading |
| Acquitions methods | Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Potentiostatic and Galvanostatic Electrochemical Impedance Spectroscopy (EIS), Battery Charging and Discharging (CC-CV), Chronoamperometry, Chronopotentiometry, Double-step Chronoamperometry and Chronopotentiometry, Square Pulse Potentiometry and Amperometry, Current interrupt, Python scripting |
| EIS frequency | 1 mHz ... 100 kHz, limited use up to 1 MHz |
| EIS amplitude (for < 1 kHz) | 1 … 1000 mV up to 50 A |
| 3× voltage probe with EIS | Up to ± 5 V |
| Connection | Ethernet, USB 2.0 |
| Software | Software for MS Windows, TCP Server, NI LabVIEW drivers, Python tools |
*) Water cooling via standard lab/industrial chiller and fittings.
If these variants do not suit you, please contact us, we offer customized solutions!
Water Cooling
For our water-cooled models, we rely on a proven, industry-standard cooling solution to ensure safe and stable operation.
It is designed for maximum simplicity and safety—just connect the hoses, fill the tank, and let the system automatically maintain the ideal temperature. Thanks to its robust build, secure fittings, and built-in flow and temperature alarms, you can run your equipment safely without worrying about leaks or overheating.
- More details and technical specifications of the recommended high-performance chiller on our e-shop: Industrial Chiller CW-5200
Documentation
Software
To run your experiments, you’ll use Artemis – Kolibrik Measurement Software – our measurement and control app that manages everything from test sequencing to real-time data acquisition and visualization. Just connect the Potentiostat, choose your method, and let the science begin.

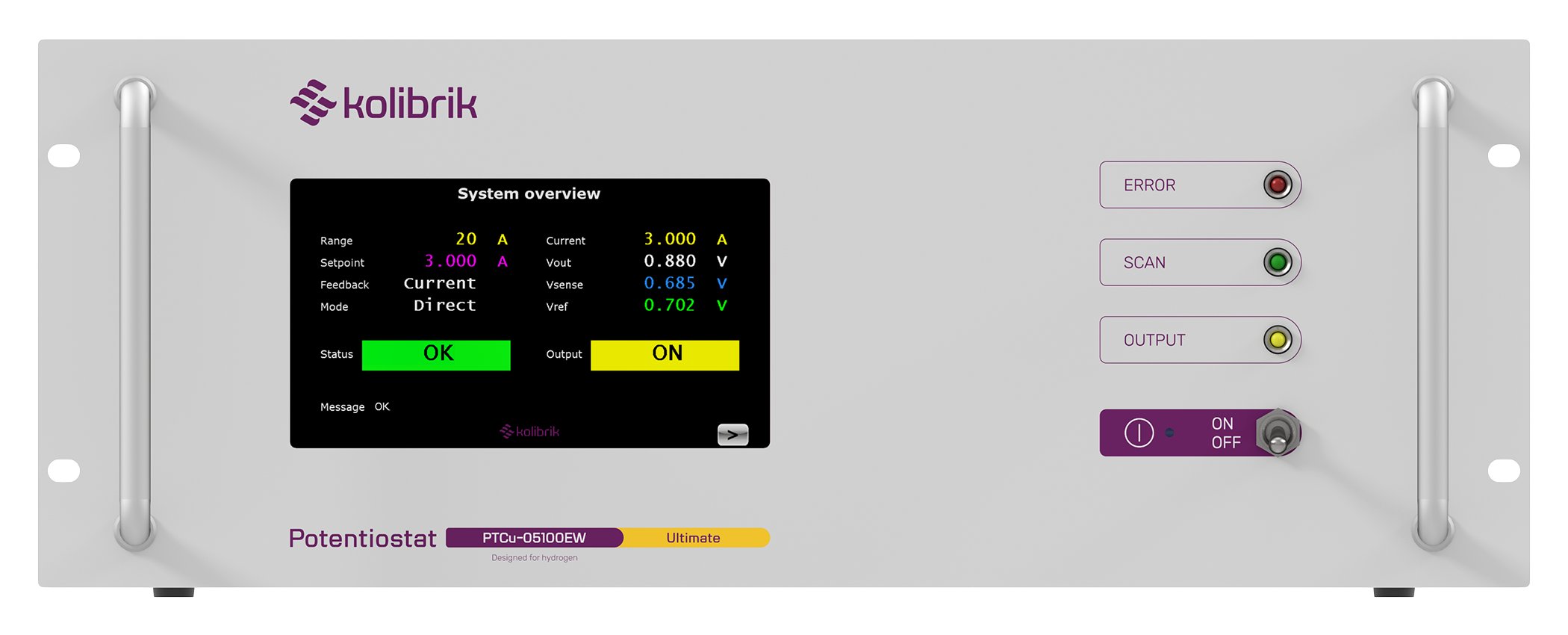

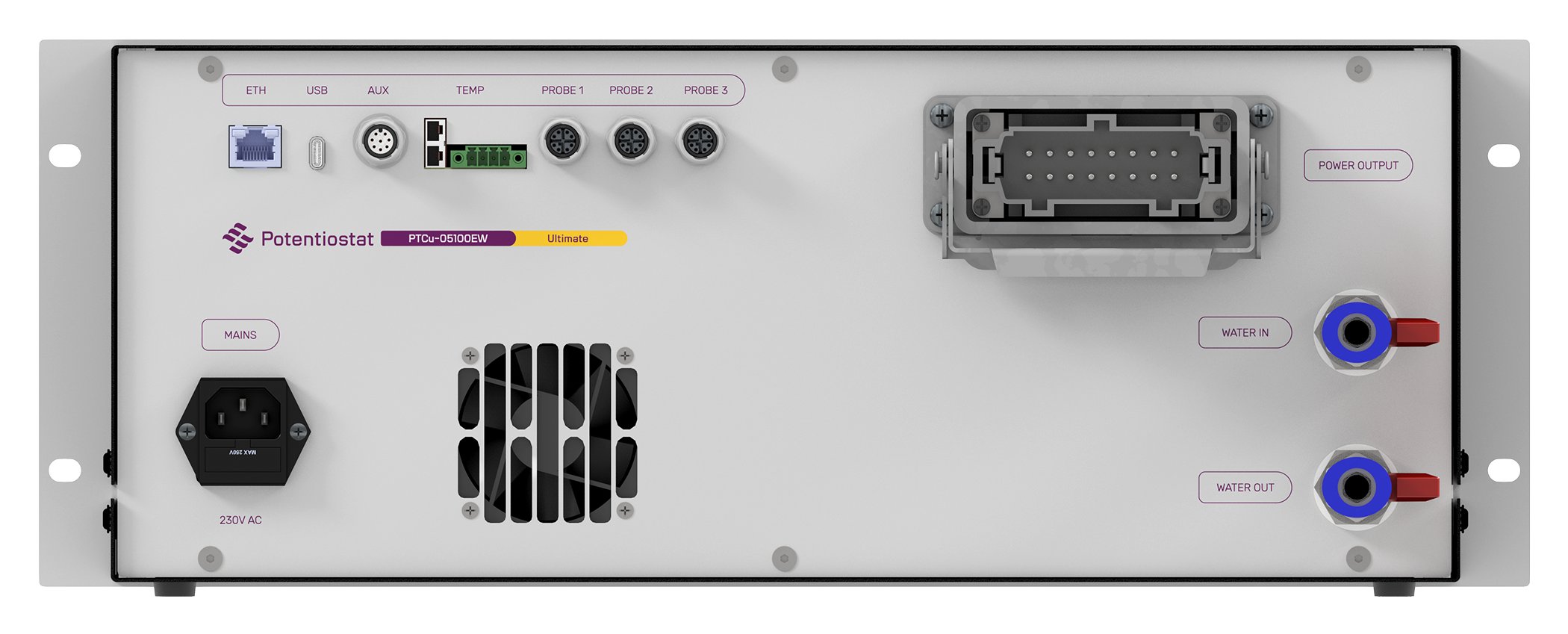

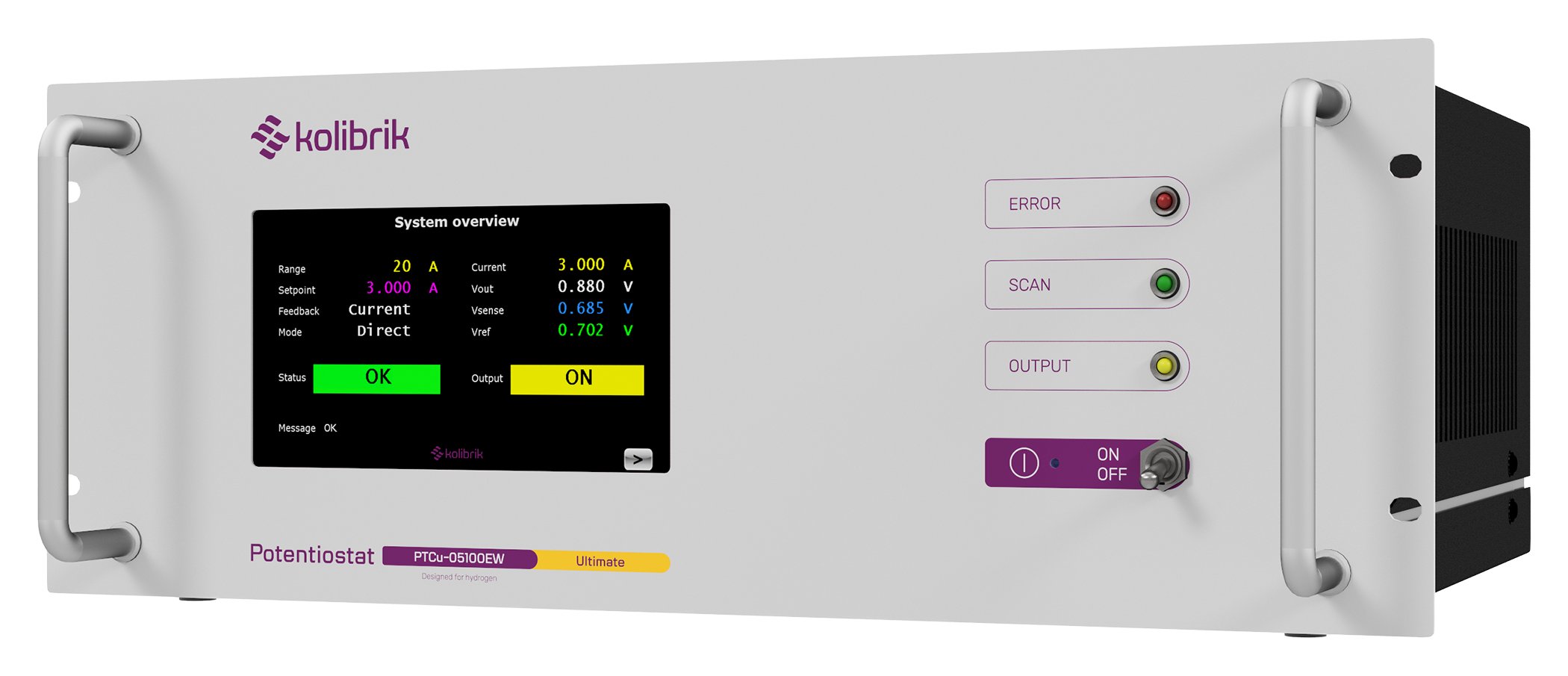

Gallery
Ready to equip your lab?
Share a few details about your application and required power range. Our engineering team will help you choose the ideal, performance-optimized solution and quickly get back to you with a tailored quote and technical recommendations.
