TEVOMET
Multi-channel temperature and voltage monitor/meter
Versatile 16-Channel Monitoring for Temperature and Voltage

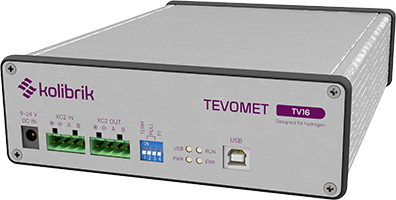

The TEVOMET TV16 is a highly precise multi-channel temperature and voltage monitor designed for both laboratory and industrial environments. Featuring 16 independent, galvanically isolated channels with 16-bit A/D converters, it delivers reliable data acquisition for demanding applications such as fuel-cell stack, electrolyzer, and battery monitoring. With broad input flexibility, low noise, and automatic offset cancellation, it easily adapts to your specific measurement needs.
Furthermore, it is can be paired directly with our Potentiostats, MegaEIS, CVM and software to provide a complete, unified testing solution.
If these parameters do not meet your requirements, please contact us, we offer customized solutions! Explore our precision 5 V solutions with the CVM-24P module and sets, or opt for the cost-effective CVM-32A module and sets. If you need precision 2.5 V, see solutions with the CVM-64H and CVM-64H2 module and sets.
Key Features
- 16 independent, galvanically isolated channels per unit
- 16-bit A/D converters for high precision measurements
- Supports various temperature sensors: Thermocouples, RTDs, and NTCs
- Broad input voltage flexibility from mV precision up to 150V
- Low noise design for reliable data, no ground loops
- Automatic offset cancellation
- See detailed specs in TEVOMET Datasheet
Solving Lab Challenges
No ground loops
Ensures accurate measurements by eliminating ground loops through 16 galvanically isolated channels.
Full tracking
Comprehensive data collection across all channels for temperature, current, and voltage tracking.
Synced EIS
Synchronized Electrochemical Impedance Spectroscopy for advanced analysis when paired with MegaEIS.
Scalability
Expandable up to 160 channels for large-scale systems by chaining units together.
Product is available on E-shop
| TEVOMET TV16 | 1× CVM-64H: 64 channels total, RS-485/USB/CAN, 1× output, 1× input; Out of Box Solution |
Technical Parameters
| Channel count | 16 independent channels for temperature sensors and voltage measuring.
Each channel is galvanically isolated. |
|
| Channel voltage range | Multiple order of magnitude input voltage range
|
|
| Basic voltage ranges
|
±1.5 V and ±150 V
|
|
| Most common temperature sensors
|
Thermocouples, built in precise cold junction compensation
RTD sensors (Pt100, Pt1000) NTC thermistors up to 10 kΩ |
|
| A/D converters resolution
|
16-bit precise A/D converters with low noise
All-channel monitoring up to 5 sps Automatic offset cancellation and AC filtering |
|

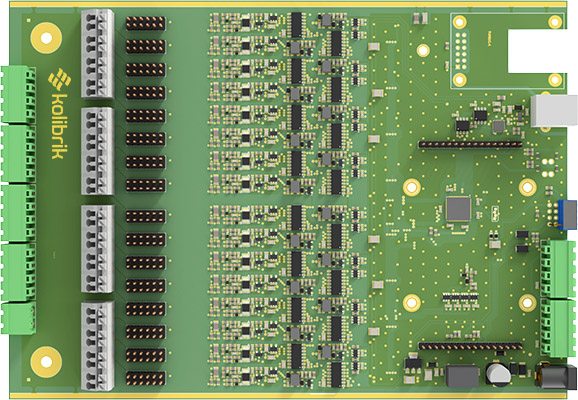

| Board dimension
|
230 mm (D) x 170 mm (W) x 55 mm (H)
|
|
| Cell connection | 26-pin IDC connector (automotive-grade connectors on request)
|
|
| Communication bus | USB
RS-485 (XC2 protocol od MODBUS) Compatible with other Kolibrik modules |
|
| Inputs / outputs | Opto-isolated I/O with serial communication capability | |
If these variants do not suit you, never mind! Tell us, what you exactly need – we offer customized solutions!
Applications
| Fuel-cell stack monitoring
|
Experimental instrumentation
|
|
| Electrolyzer monitoring
|
Bakeout controllers
|
|
| Battery monitoring
|
Test stand automation
|
|
Gallery
Documentation
Software
To run your experiments, you’ll use the application CVM Manager – our measurement and control app that manages everything from workstation setup to real-time data acquisition and visualization. Just connect the Cell Voltage Monitoring system, and let the science begin.
Custom Design
We offer customization of model parameters, tailored mechanical and electrical setups, or as part of complete development services for custom projects and series production. Need something specific? Just tell us your key requirements — number of channels, interfaces or custom cables needs, custom enclosures, software functions, communication protocols, and any other application-specific constraints — we offer customized solutions!
