TEVOMET

Multi-channel temperature and voltage monitor / meter

SOLUTION DETAILS

  • 16 independent channels for temperature sensors and voltage measuring
  • Multiple order of magnitude input voltage range
  • Most common temperature sensors:
    • Thermocouples, built in precise cold junction compensation
    • RTD sensors (Pt100, Pt1000)
    • NTC thermistors up to 10 kΩ
  • Each channel is galvanically isolated
  • Adjacent channels can be connected internally to common potential
  • Multiple TEVOMETs can be chained through internal bus up to total 160 channels
  • Multiple communication options with - Ethernet, USB, RS-485
  • Simple open protocol
  • PC monitoring software
  • LabView drivers
  • On-demand modification options: eg. additional communication protocols, built-in display, custom algorithms
  • Accessories:
    • Piggyback for voltage range 5 V
    • Piggyback for voltage range 10 V
    • Piggyback submodules for current ranges 4 - 20 mA

Most sold

Product Description

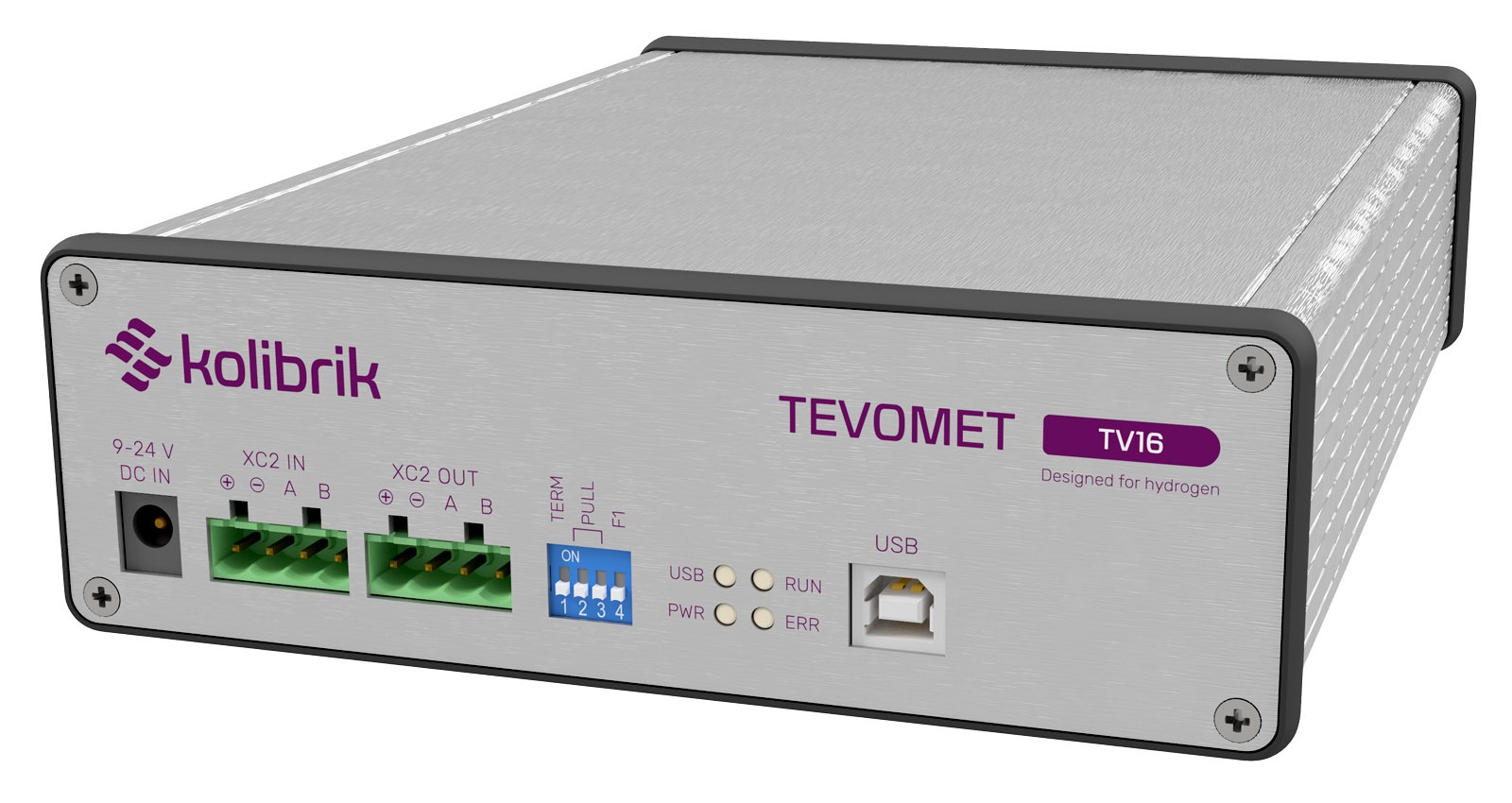

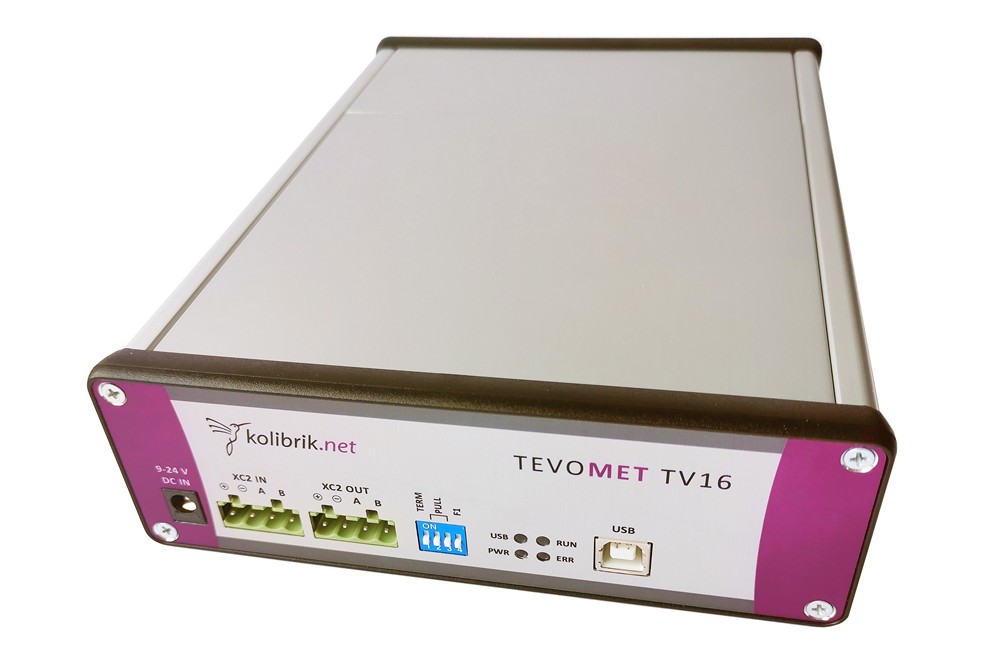

TEVOMET TV16 precision 16-channel temperature/voltage meter, suitable for thermocouples and resistive temperature sensor, general voltage measurement, each channel isolated individually
TEVOMET T16 precision 16-channel thermocouple meter, each channel isolated individually

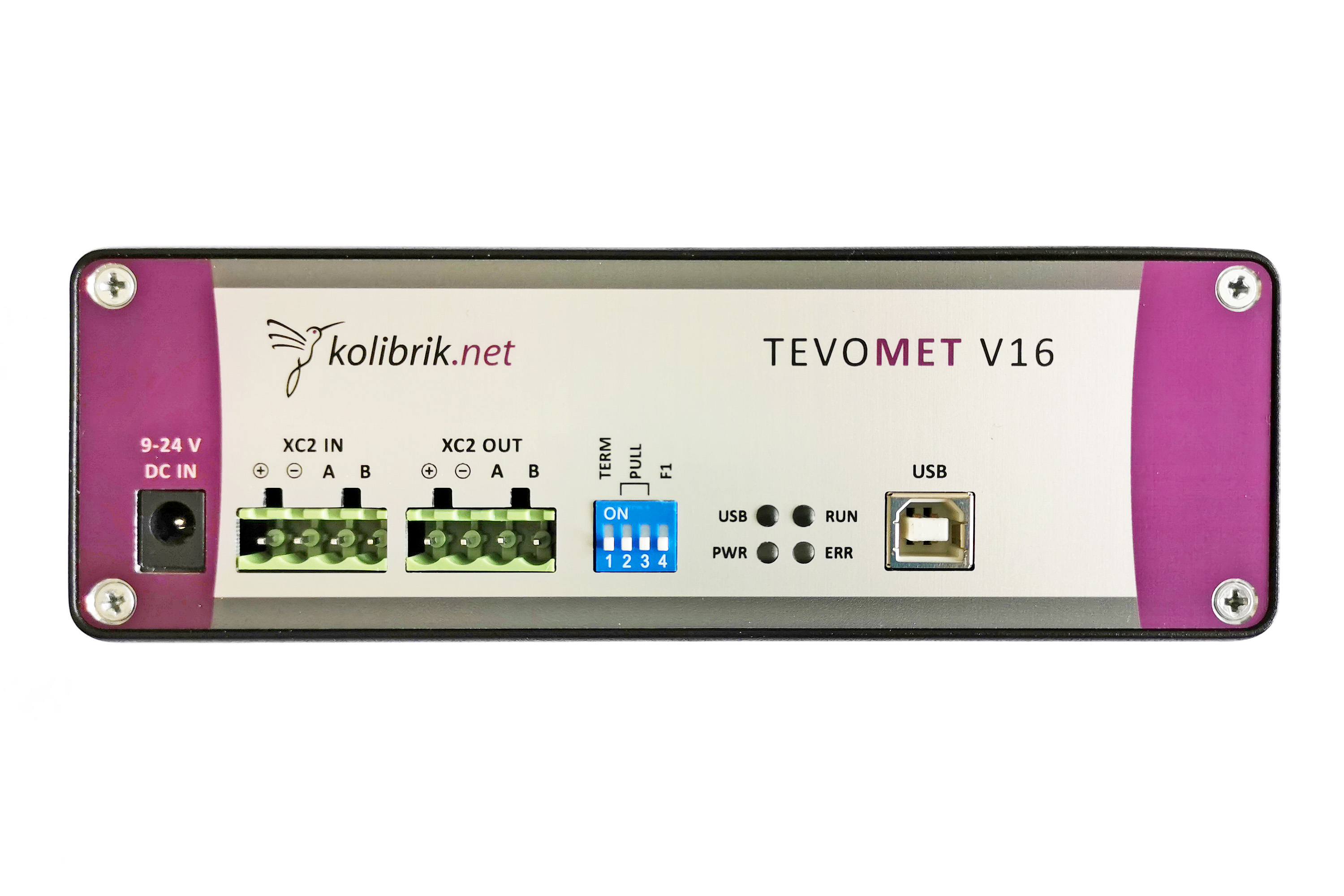

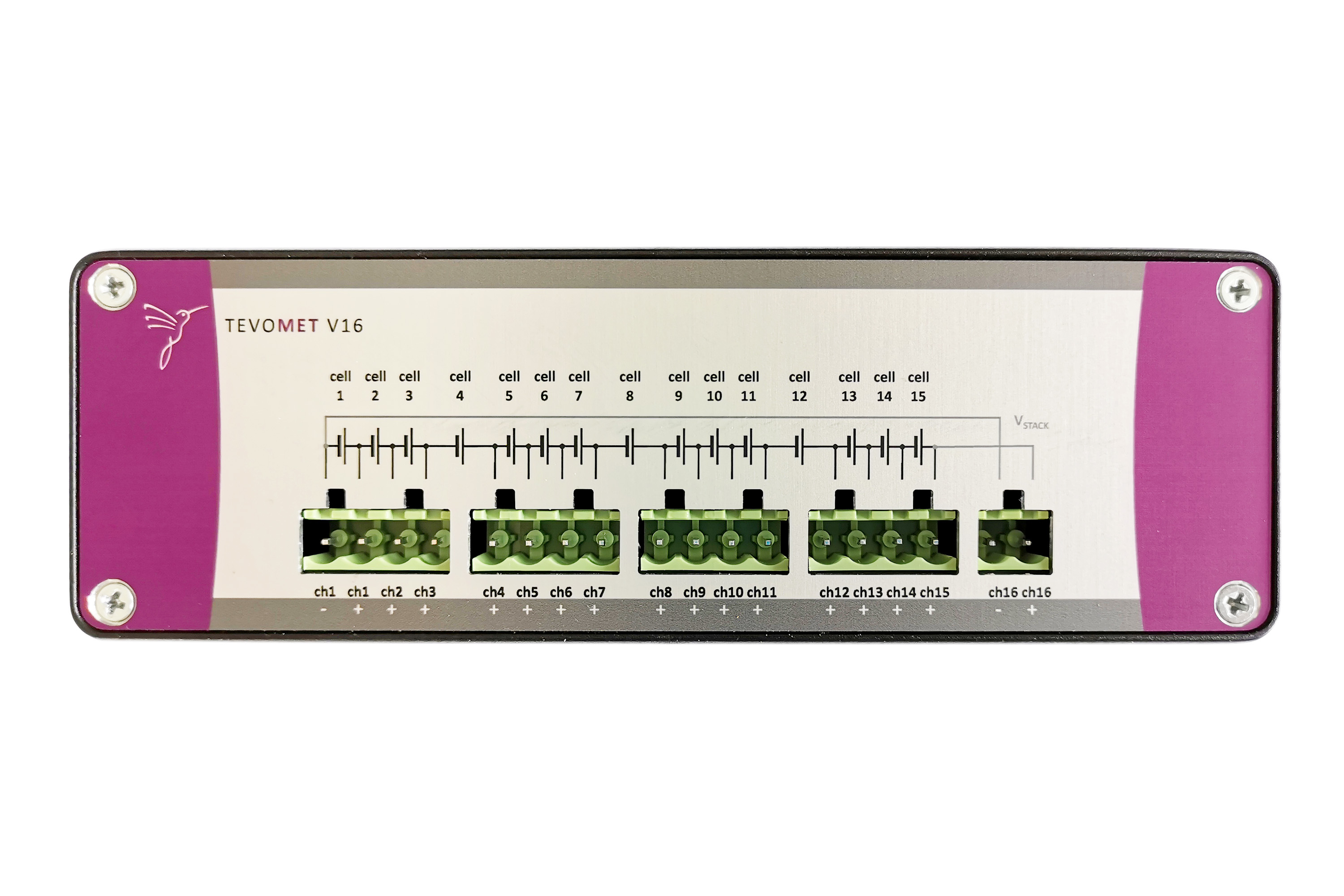

TEVOMET V16 15 channels pre-configured for 1,5 V range with shared adjacent terminals 1 individual channel pre-configured for 150 V range total 16 channels, connection external connector + plug with screw terminals
TEVOMET V32 15+15 channels pre-configured for 1,5 V range with shared adjacent terminals 1+1 channel pre-configured for 150 V range total 32 channels, connection external connector + plug with screw terminals RS-485, USB

If these variants do not suit you, please contact us, we offer customized solutions!
