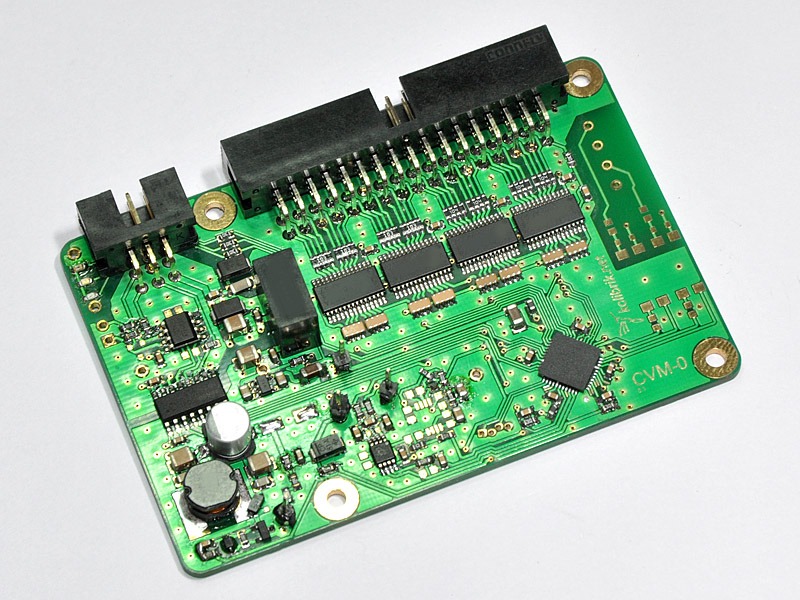

CELL VOLTAGE MONITOR CVM-32A

Stackable CVM system designed for H2fuel-cell stack research and applications. CVM system can be used to prevent damage to individual cells, to monitor lifetime conditions, and to ensure optimal working conditions in applications.

CVM-32A module is designed as a cost-effective solution mainly for applications. For research, automotive, testing and precision application see CVM-24P or TEVOMET. For comparison of all models see Overview.

PRODUCT DETAILS

  • 32 channel per board
  • Basic channel voltage range ±1.5 V
  • Maximum voltage span of all channels is 34 V
  • Multiple boards can be chained for > 32 cell stack, connector for easy adjacent cell chaining
  • Resolution 1 mV (12-bit)
  • Input impedance > 100 MΩ
  • Sample rate 100 sps
  • Cell connection via 34-pin IDC connector
  • Compatible with all other Kolibrik.net modules (KMS, DIN-rail I/O modules, Tevomet, ...), communication bus XC2/RS485
  • IO (1x digital output, 1x digital input)
  • Available customizations: up to 3x opto-isolated inputs or outputs; additional opto-isolated UART; different channel voltage range; customized communication protocol; higher sample rate up to 1 ksps
  • Available accessories: power supply module for 12/24 VDC; USB & serial (RS232) interface; Raspberry PI connection
  • Application examples: H2 fuel-cell tests stands, H2 fuel-cell application monitoring, Control systems

PRODUCT VARIANTS

Self-assembly kits

available in-stock for purchase in our eshop

CVM-S64A
2x CVM-32A: 64 channels total, RS485/USB, 2x output, 2x input, Self-assembly kit

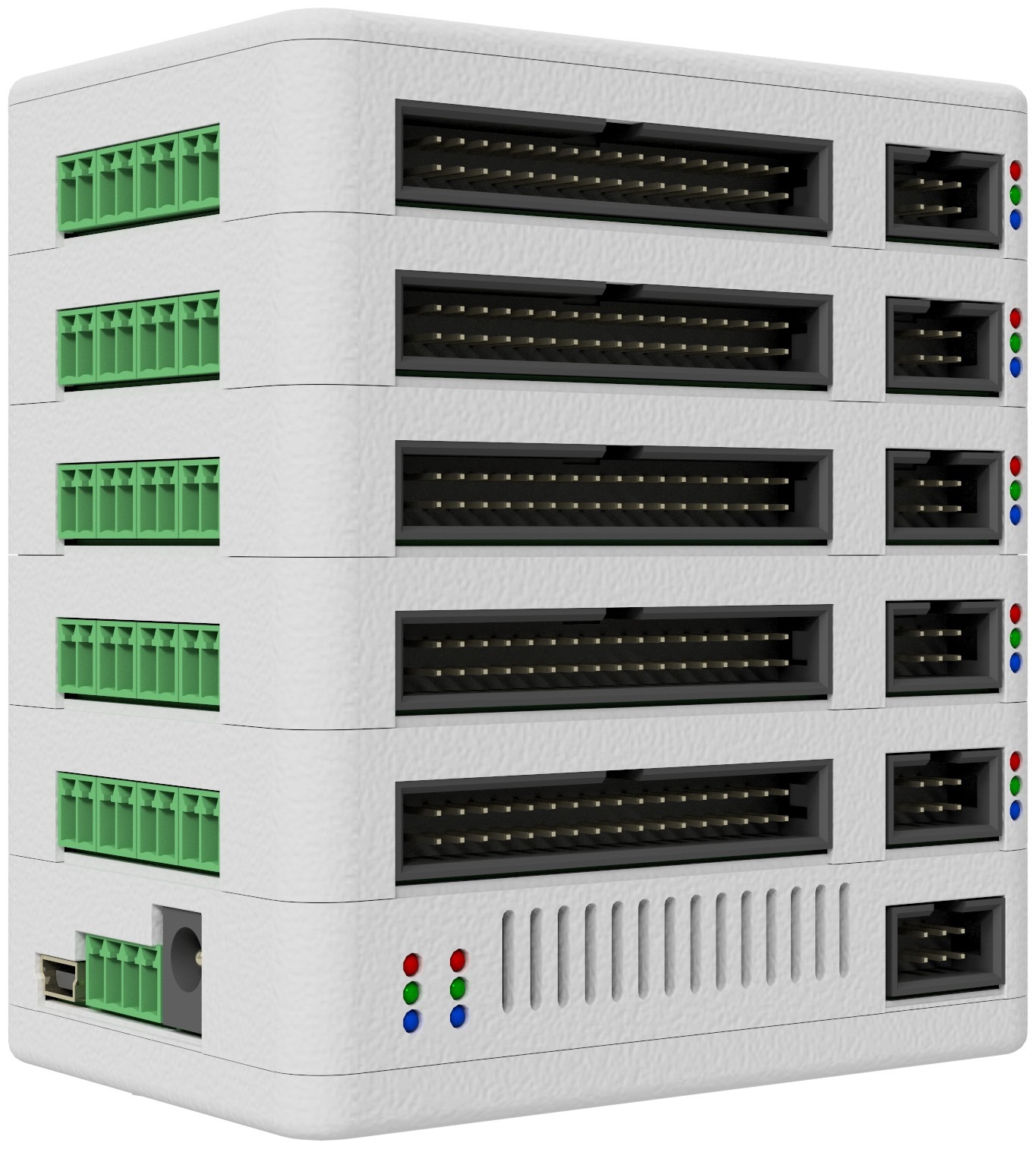

CVM-S160A
5x CVM-32A: 160 channels total, RS485/USB, 5x output, 5x input, Self-assembly kit
CVM-E32A 1x CVM-32A: 32 additional channels, 1x output, 1x input, Extension for self-assembly kit

Custom-made sets

  • custom number of channels
  • optionally assembled into plastic enclosure
  • we can provide you with custom cables
  • on demand modifications possible - connectors, enclosure, software functions, communication protocols, ...
  • we offer redesign for mass production

IMAGES

RELATED PRODUCTS

CV-M24P - 24-channel Cell Voltage Monitor for H2FC stacks, voltage range ±5V, precision automotive version with CAN

CVM-64H - 64-channel Cell Voltage Monitor for H2FC stacks, voltage range ±2.5V

TEVOMET - Multi-channel temperature and voltage monitor / meter

KMS -  Stackable modular system designed for size-restrained compact control solutions

Overview of all Cell Voltage Monitoring products
