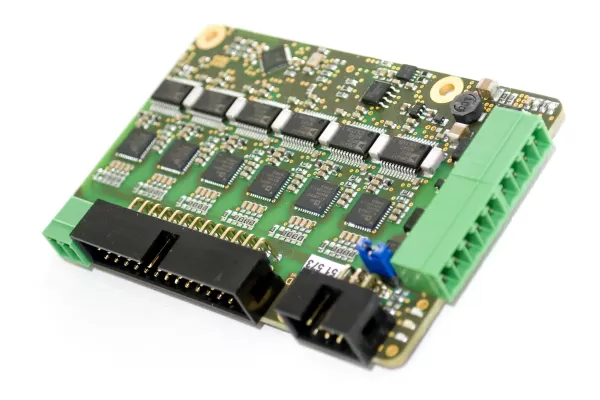

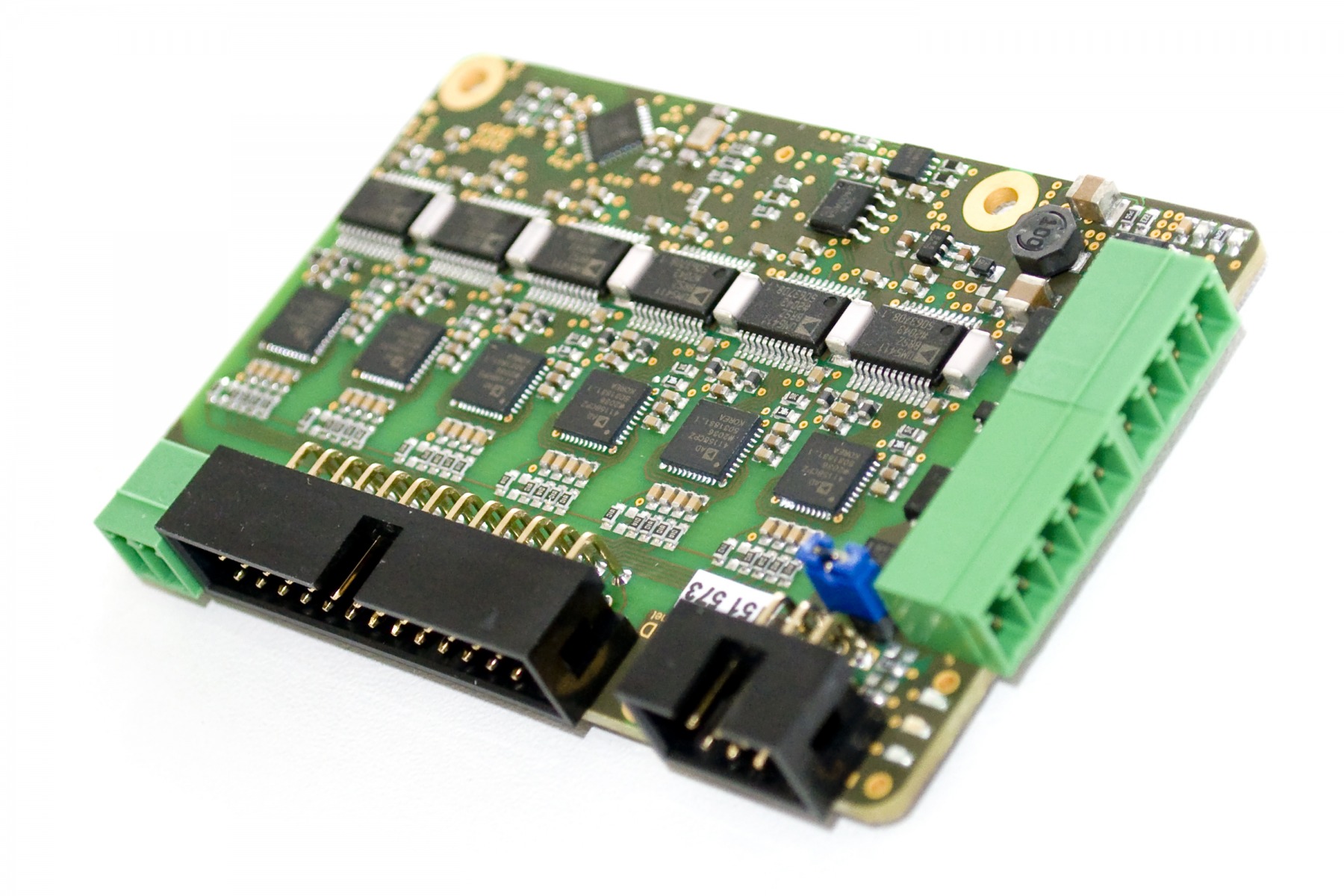

Cell Voltage Monitor CVM-24P

Stackable cell voltage monitoring (CVM) system designed for H2 fuel-cell stack research, testing and applications. CVM system can be used to prevent damage to individual cells, to monitor lifetime conditions, and to ensure optimal working conditions in applications. CVM-24P module is ideal for testing and research purposes.

CVM-24P module is designed as a precise automotive-ready solution with additional CAN bus for use mainly in hydrogen fuel cells and electrolyzers research, testing and applications.

For cost-effective solution for applications see CVM-32A or CVM-64H module and kits. For general temperature and voltage monitoring see TEVOMET. For comparison of all models see Overview.

PRODUCT DETAILS

  • 24 channels per board
  • Multiple boards can be daisy-chained
  • Very compact design, part of FC Stack Control System
  • Compatible with other Kolibrik.net modules
  • Default channel range ± 5V, can be extended
  • 24-bit sampling, RMS noise 10-100 μV
  • Accuracy 0,02 % of range + 0,05 % of reading
  • Sample rate up to 500 sps
  • Communication buses
    • CAN bus, RS-485/XC2 (compatible with other Kolibrik.net modules)
    • USB (USB/RS485 converter in KMS-PWR module)
  • Stand alone or component of Compact Modular System and FC Stack Control System
  • Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.

VARIANTS AND OPTIONS

Self-assembly kits

available in-stock for purchase in our eshop

CVM-S48P 2x CVM-24P: 48 channels total, RS485/USB/CAN, 2x output, 2x input, Self-assembly kit
CVM-S120P 5x CVM-24P: 120 channels total, RS485/USB/CAN, 5x output, 5x input, Self-assembly kit
CVM-E24P 1x CVM-24P: 24 additional channels, 1x output, 1x input, Extension for self-assembly kit

Custom-made sets

  • custom number of channels
  • optionally assembled into plastic enclosure
  • we can provide you with custom cables
  • on demand modifications possible - connectors, enclosure, software functions, communication protocols, ...
  • we offer redesign for mass production
