Cell Voltage Monitor CVM-64H

Stackable cell voltage monitoring (CVM) system designed for H2 fuel-cell stack research, testing and applications. CVM system can be used to prevent damage to individual cells, to monitor lifetime conditions, and to ensure optimal working conditions in applications. CVM-64H module is ideal for testing and research purposes.

CVM-64H module is designed as a precise automotive-ready solution with additional CAN bus for use mainly in hydrogen fuel cells and electrolyzers research, testing and applications.

For precise 5 V-range solution see CVM-24P module and kits. For cost-effective solution for applications see CVM-32A modules and kits. For general temperature and voltage monitoring see TEVOMET. For comparison of all models see Overview.

PRODUCT DETAILS

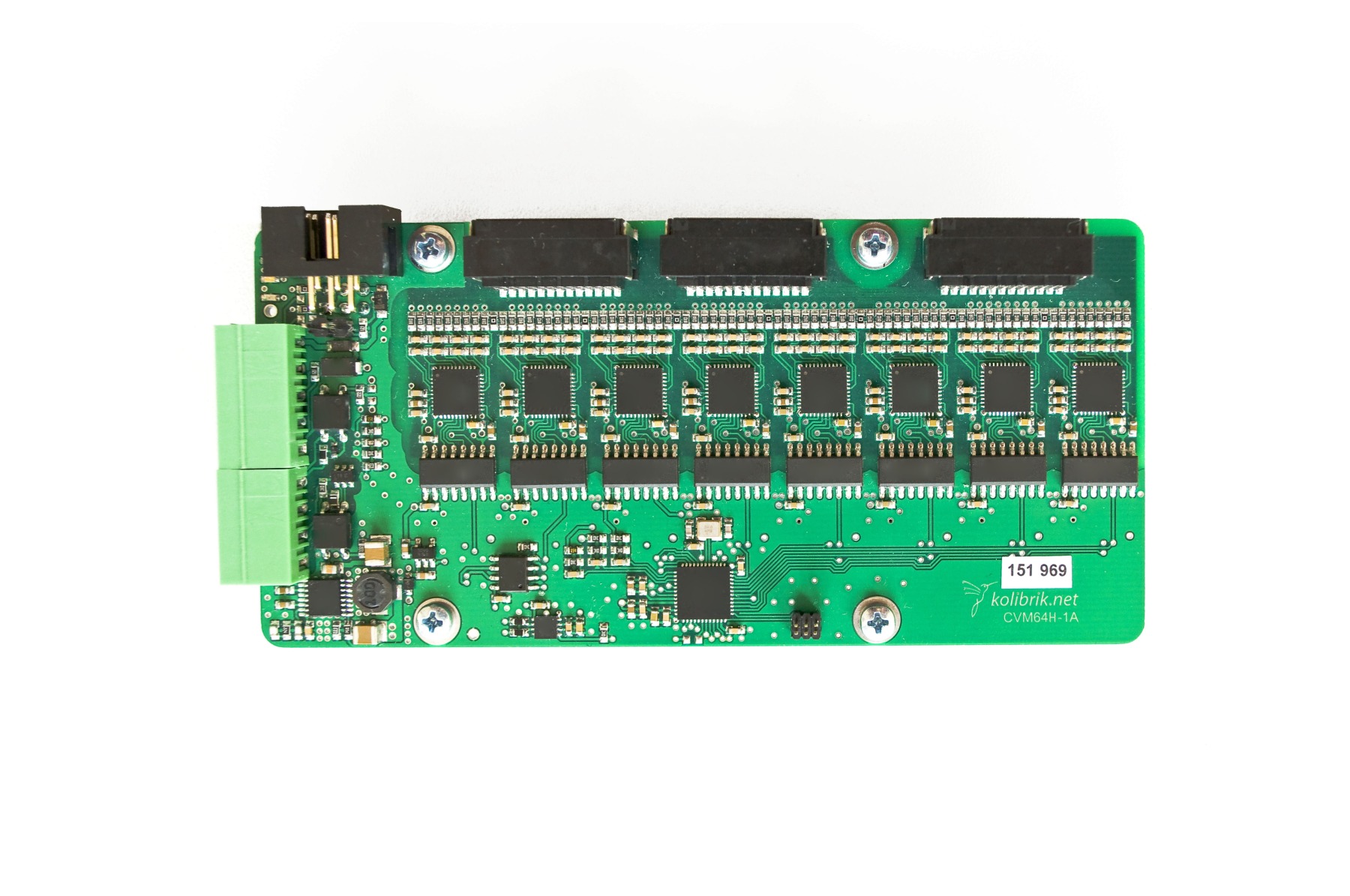

  • 64 channels per board

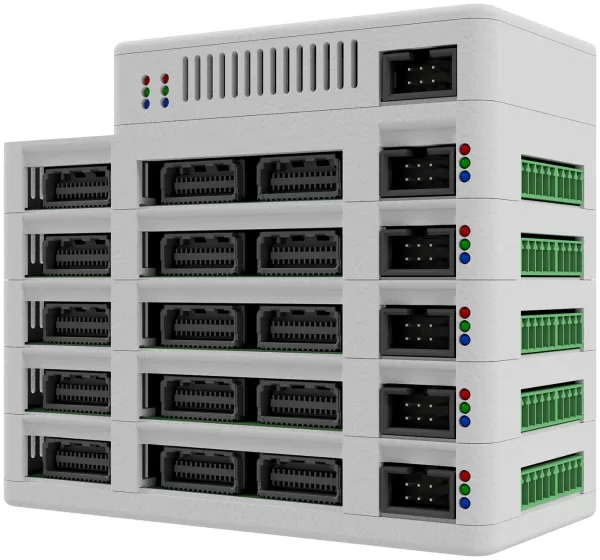

  • Multiple boards can be daisy-chained
  • Very compact design, part of FC Stack Control System
  • Compatible with other Kolibrik.net modules
  • Default channel range ± 2.5 V, can be extended
  • 24-bit sampling, RMS noise 10-100 μV
  • Accuracy 0.02 % of range + 0.05 % of reading
  • Sample rate up to 250 sps
  • Communication buses
    • CAN bus, RS-485/XC2 (compatible with other Kolibrik.net modules)
    • USB (USB/RS485 converter in KMS-PWR module)
  • Stand alone or component of Compact Modular System and FC Stack Control System
  • Applications: H2 fuel-cell stacks and electrolyzer test stands, research and control systems, hydrogen technology, redox-flow batteries, etc.

VARIANTS AND OPTIONS

Custom-made sets

  • custom number of channels

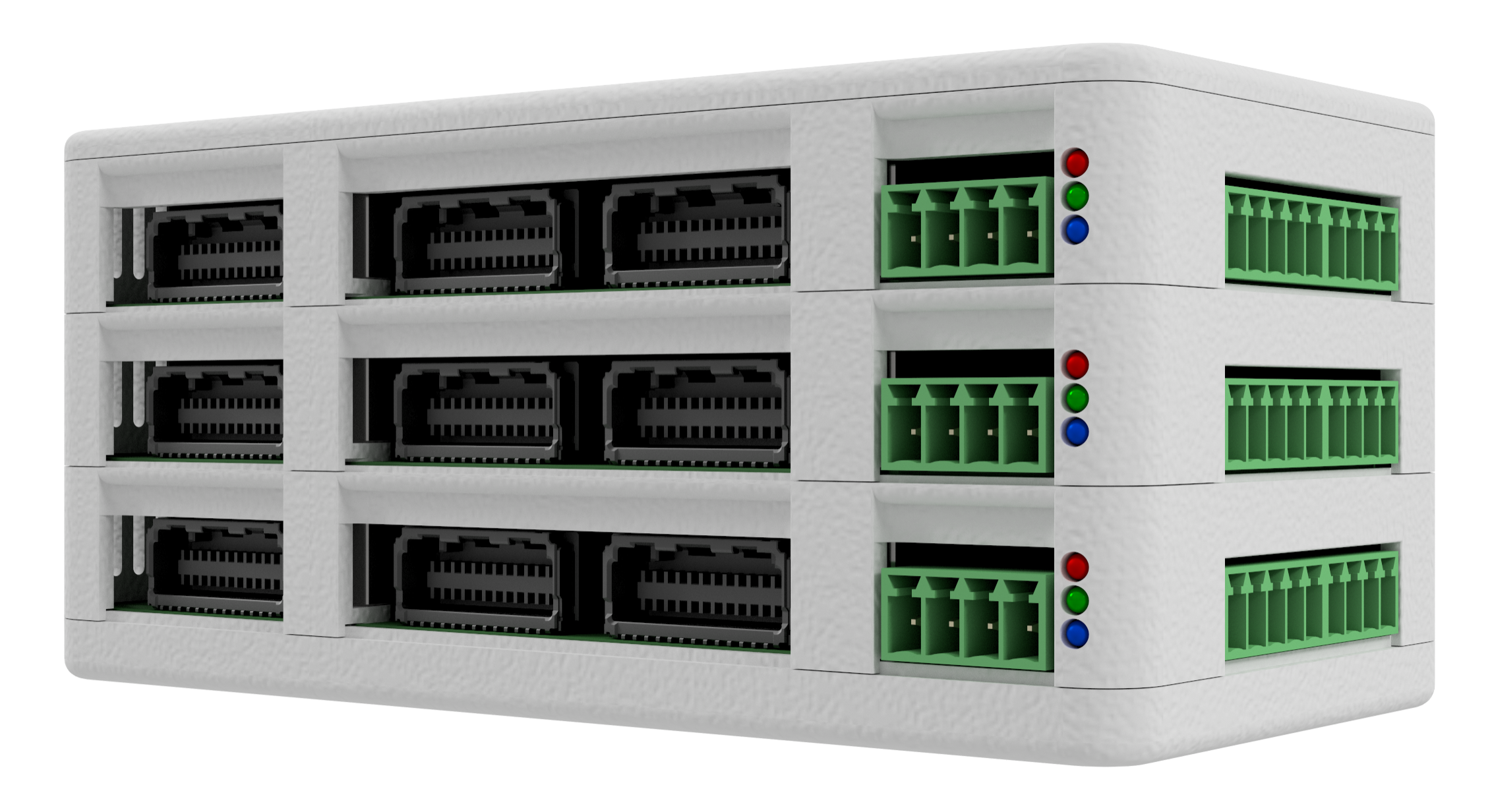

  • optionally assembled into plastic enclosure
  • we can provide you with custom cables
  • on demand modifications possible - connectors, enclosure, software functions, communication protocols, ...
  • we offer redesign for mass production

DOWNLOADS

IMAGES

RELATED PRODUCTS

CVM32A - 32-channel Cell Voltage Monitor for H2FC stacks, voltage range ±5V, precision automotive version with XC2

CVM24P - 24-channel Cell Voltage Monitor for H2FC stacks, voltage range ±5V, precision automotive version with CAN

Tevomet - Multi-channel temperature and voltage monitor / meter

KMS - Stackable modular system designed for size-restrained compact control solutions

Overview of all Cell Voltage Monitoring products

CONTACT US

If you need more information or looking for specific solution or product, contact us!
